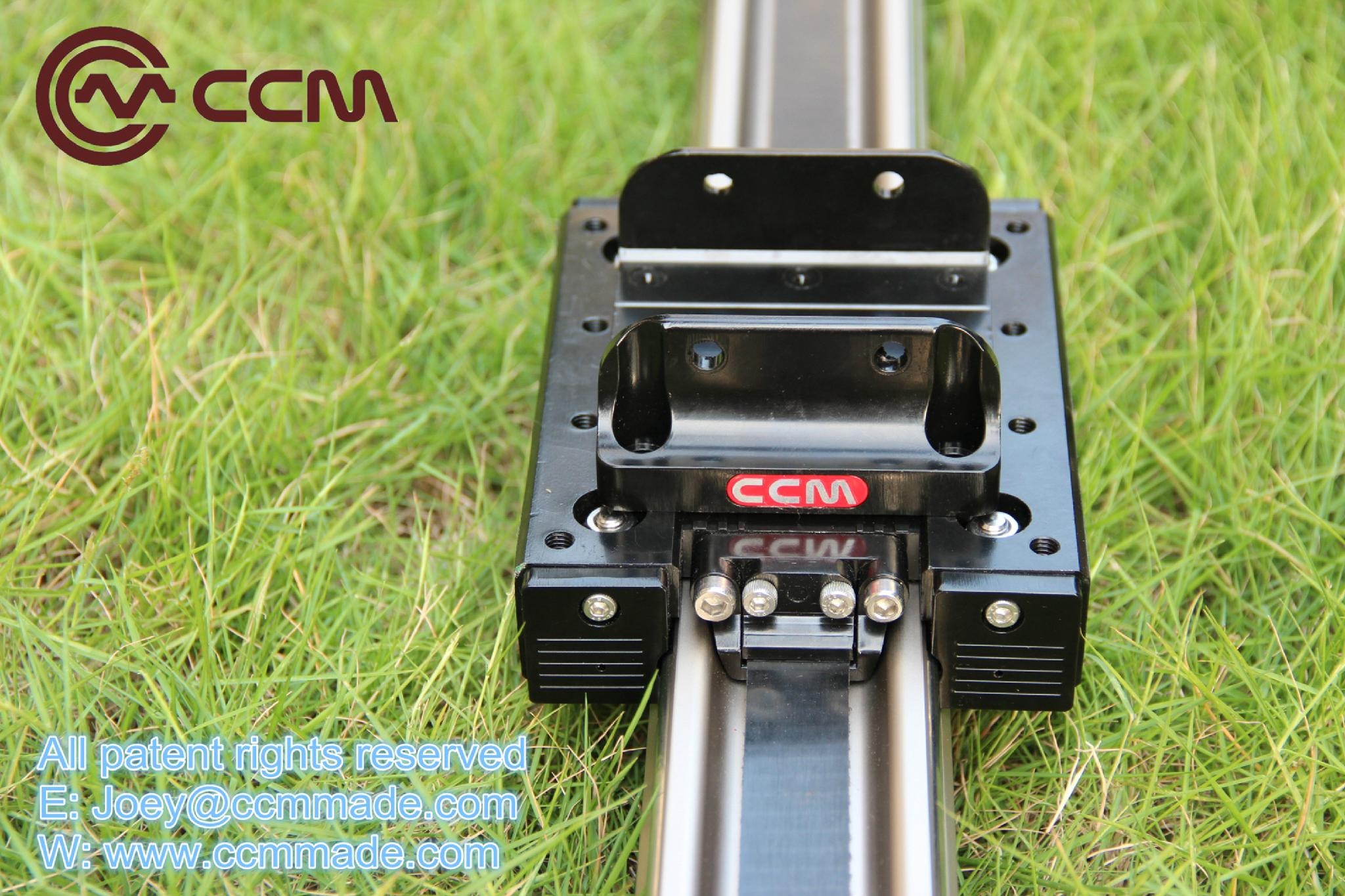

CCM W60 Customized length motorized roller bearing Machining linear guide

  • CCM W60 Customized length motorized roller bearing Machining linear guide
  • CCM W60 Customized length motorized roller bearing Machining linear guide
  • CCM W60 Customized length motorized roller bearing Machining linear guide
  • CCM W60 Customized length motorized roller bearing Machining linear guide
  • CCM W60 Customized length motorized roller bearing Machining linear guide
Model No.︰-
Brand Name︰CCM
Country of Origin︰China
Unit Price︰US $ 288 / pc
Minimum Order︰1 pc
Share on:

 Total 20 Related Items
Prev1617181920Next

Product Description

- 60 mm x 60 mm (2.36 in x 2.36 in) body profile
- Belt drive
- Stroke lengths up to 2.70m (8.86 ft)
- Carriage load up to 245 N (25kg, 55.1 lbf)
- Maximum moments up to 10 Nm (88.5 lb-in)
- Travel Speeds up to max. 1.5 m/s (59.1 in/s)
- Linear Accuracy: < 0.05 mm (< 0.002 in)
- Positional Repeatability: < 0.05 mm (< 0.002 in)
- Profile available color: Champagne

Product Feature
- Self-cleaning function
- multiple configurations
- 3 Lows - low friction, low noise, low vibration
- 3 Highs - high quality, high performance, high cost efficiency



Products by category




Type of rails:
A. Belt-driven
B. Ball-screw


A) Belt-driven: 4 series, 8 products


Features: Customized length, max length 6 meters; max load from 5kg to 35 kgs; positioning repeatability <0.05mm,

Light load:
1. CCMW40-05, max load = 5kg, rail width=40mm
2. CCMW45A-07, max load = 5kg, rail width=45mm

Medium load:
3. CCMW40-10, max load = 10kg, rail width=40mm
4. CCMW45-15, max load = 15kg, rail width=45mm
5. CCMW50-20, max load = 20kg, rail width=50mm

Heavy load:
6. CCMW50-25, max load = 25kg, rail width=50mm
7. CCMW60-30, max load = 30kg, rail width=60mm
8. CCMW60-35, max load = 35kg, rail width=60mm

B) Ball-screw: 1 series, 3 products


Features: fixed stroke length; max load is 5kg; positioning repeatability <0.02mm

1. S35-50, max load = 5kg, stroke length=50mm
2. S35-100, max load = 5kg, stroke length=100mm
3. S35-150, max load = 5kg, stroke length=150mm



Add: Rm 520, Block A1, Tian An Cyber Port,No. 1 Huang Jin Rd, Nan Cheng District,Dongguan City, China
Tel: +86 0769 33652880
Fax: +86 0769 23295125
FB:https://www.facebook.com/ccmmade
Homepage: www.ccmmade.com
